Architecture🔗

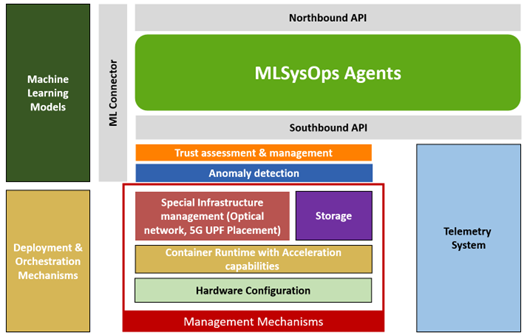

MLSysOps introduces a hierarchical agent-based architecture composed of three levels: - Node Agents reside on individual nodes and expose configuration interfaces, monitor resource usage, and provide direct access to telemetry. - Cluster Agents coordinate groups of nodes, aggregate telemetry, and issue deployment decisions or adaptation instructions. - The Continuum Agent sits at the top level, interfacing with external stakeholders (via northbound APIs), receiving high-level intents and application descriptors, and coordinating decision-making across slices. Each layer operates a Monitor–Analyze–Plan–Execute (MAPE) control loop, enabling autonomous adaptation based on local and global telemetry, system optimization targets, and ML-driven policies. Importantly, this architecture separates management logic from resource control, allowing for modular evolution and system introspection.

The MLSysOps agents, supported by ML models, analyse, predict, and optimize resource usage patterns and overall system performance by allocating, monitoring and configuring the different resources of the underlying layers via the mechanisms that are implemented in the context of WP3 and manifested in the current deliverable. This integration is a collaborative effort that draws on the diverse expertise of project partners, each contributing unique insights and solutions to the multifaceted challenges of cloud and edge computing. This collaborative approach is complemented by an iterative development process characterized by continuous testing and feedback loops. Such a process ensures that the mechanisms developed are not only effective in their current context but are also scalable and adaptable to future technological advancements and operational needs.

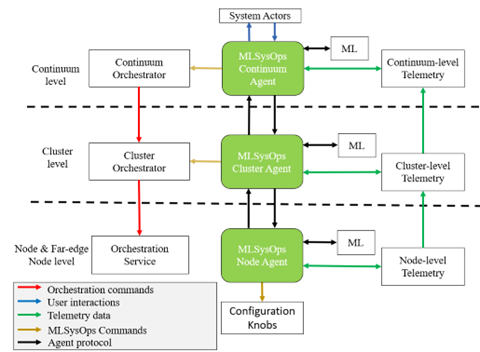

The following figure depicts a comprehensive illustration of the MLSysOps hierarchical agent system's placement and its interactions with two other fundamental subsystems: container orchestration and telemetry. This agent hierarchy is structured in line with the orchestration architecture, and it is logically divided into three tiers. The communication among the three subsystems (agents, container orchestration, and telemetry) is facilitated through designated interfaces at each tier. Moreover, the agent system engages with the continuum level's system agents and integrates plug-in configuration policies that can use ML models at all levels. At every level, agents utilize mechanism plugins to implement commands for adjusting available configuration and execution mode options.

Node-level agents’ interface with local telemetry systems and expose configuration knobs. Cluster-level agents coordinate resource allocation decisions across groups of nodes. At the top level, the continuum agent handles global orchestration, provides APIs to external actors, and aggregates telemetry data. ML-driven decisions can be made at every layer, using information for the respective layer. This layered approach facilitates scalability and separation of concerns while supporting collaboration across orchestration, telemetry, and ML systems. The agent infrastructure interacts through three distinct types of interfaces. The Northbound API provides access to application developers and system administrators. The Southbound API interfaces with the underlying telemetry collection and configuration mechanisms. The ML Connector allows ML models to be plugged into the framework and invoked for training, prediction, and explanation tasks. The telemetry subsystem is built upon the OpenTelemetry specification and is responsible for collecting and processing metrics, logs, and traces. These are abstracted into hierarchical telemetry streams that feed the decision logic of the agents and the ML models. Data collection happens at the node level, where individual collectors expose metrics either in raw or aggregated formats. These are processed through transformation pipelines and propagated to cluster and continuum levels for higher-level aggregation and analysis.

Application deployment and orchestration are driven by declarative descriptions submitted by application developers and administrators. These descriptions capture the application's structure, resource requirements, and quality-of-service objectives. Deployment is handled through standard container orchestration tools, which are extended by the MLSysOps framework to support advanced placement decisions and runtime adaptation. For far-edge deployments, the framework introduces a proxy-based architecture involving embServe on constrained devices and a virtual orchestrator service running inside containerized environments. This approach allows resource-constrained devices to be seamlessly integrated into the same orchestration and telemetry flows as more capable edge and cloud nodes.

The object storage infrastructure builds upon and extends SkyFlok, a secure and distributed storage system. In MLSysOps, this infrastructure supports adaptive reconfiguration of bucket policies based on real-time telemetry and application usage patterns. The storage system exposes telemetry data regarding latency, bandwidth, and access frequency, enabling agents and ML models to optimize redundancy and placement decisions without disrupting ongoing operations. The framework also includes specialized subsystems for anomaly detection and trust assessment. These modules analyze telemetry data to identify attacks or malfunctions and classify anomalies using ML models. Their outputs are exposed through the telemetry interface and used by higher-level agents to trigger remediation strategies or adapt orchestration plans. Trust levels for nodes are computed using a combination of identity, behaviour, and capability metrics, forming a reputation-based model that influences agent decision-making.

ML models play a central role in enabling the autonomic operation of the framework. Each level of the agent hierarchy may employ one or more models, which are integrated via the ML Connector API. These models receive structured telemetry input and produce configuration decisions, which are interpreted and enacted by the agents. The framework supports reinforcement learning, continual learning, and federated learning scenarios. In addition, explainability mechanisms are integrated into the ML workflows to allow system administrators and application developers to understand and audit the decisions made by the models.

MLSysOps effectively manages operations by leveraging telemetry data collected from each level, which provides essential insights. This data, combined with machine learning models, enhances the decision-making process, aligning with both the application's objectives and the system's requirements. Actions based on these decisions are cascaded and refined from the top level downwards. The final status and outcomes of these decisions are then made accessible to system Actors. The design and functionality of the telemetry system are further explaiend in Telemetry system design.
