SPADE🔗

SPADE (Smart Python Development Environment) [56] is a middleware platform for multi-agent systems written in Python, leveraging the capabilities of instant messaging to manage communication between agents. It simplifies the development of intelligent agents by combining a robust platform connection mechanism with an internal message dispatcher that efficiently routes messages to various integrated behaviours. Each agent in SPADE is identified by a unique Jabber ID ( JID) and connects to an XMPP server using valid credentials. The use of XMPP not only provides persistent connections and reliable message delivery but also enables real-time presence notifications, which are essential for determining the availability of agents in a dynamic environment. The selection of SPADE as the middleware for our multi-agent system is based on several key factors. Its native Python implementation allows for seamless integration with machine learning libraries and other smart applications, ensuring that sophisticated functionalities can be embedded directly within the agents. SPADE adheres to the FIPA standards, promoting interoperability with other agent platforms such as JADE, which is crucial for systems requiring diverse communication protocols. Furthermore, its modular architecture and open-source nature foster a vibrant community for continuous improvement, supporting extensibility through plugins, and custom behaviours. This robust, flexible design not only accelerates the development cycle but also provides a reliable foundation for building complex, intelligent multi-agent systems.

Behaviours🔗

In SPADE, a behaviour is a modular piece of functionality that encapsulates a specific task or activity for an agent. Behaviours determine how an agent reacts to incoming messages, processes information, or interacts with its environment. They can operate in different modes:

• Cyclic and Periodic behaviours are useful for performing repetitive tasks.
• One-Shot and Time-Out behaviours can be used to perform casual tasks or initialization tasks.
• The Finite State Machine allows more complex behaviours to be built.

This flexible structure allows us to efficiently delegate tasks without overcomplicating the agent’s core logic, ensuring clean and maintainable design. Within our multi-agent system, each agent is assigned specific behaviours based on its role and the tasks it needs to perform. Each type of agent includes unique behaviours that enable it to carry out specialized tasks. For example, the Continuum Agent is responsible for interacting with both other agents and the user, incorporating behaviours for processing user requests, such as responding to a ping message to confirm aliveness, processing application and ML model descriptions, and checking the deployment status of these applications or models. And other behaviours to process agent’s interactions that are also common functionalities across the agents, for example handling subscriptions and heartbeat messages.

As previously mentioned, agents are structured across three layers: Node Agents, Cluster Agents, and a central Continuum Agent. Each type of agent is assigned a specific set of behaviours that align with its role in the system. These behaviours enable the agents to communicate, monitor health, process application logic, and adapt to runtime conditions. Below is a detailed explanation of each behaviour, followed by a description of which agent types implement them.

• Heartbeat Behaviour: This behaviour is used by node and cluster agents and is responsible for periodically sending a signal that indicates the agent is alive. These heartbeat messages are used by higher-layer agents to maintain an up-to-date view of active agents in the system.
• Subscribe Behaviour: Used by Node and Cluster Agents, this behaviour sends a subscription request to a higher-layer agent. It allows the agent to join the hierarchical structure and start reporting to its parent, establishing the control flow across layers.
• Message Receiving Behaviour: Present in all agent types, this behaviour allows an agent to handle incoming messages from other agents. These messages may contain commands, data updates, or coordination requests. It is essential for asynchronous interaction across the distributed system.
• Message Sending Behaviour: Also implemented by all agent types, this behaviour handles sending messages to other agents. It enables agents to initiate communication, send results, or trigger actions elsewhere in the system.
• Management Mode Behaviour: This behaviour allows agents to switch between different decision-making strategies. It is present across all agents and can dynamically toggle between heuristic control and machine learning-based approaches. This flexibility allows the system to adjust its intelligence level based on runtime context or user commands.
• Policy & Mechanism Plugin Management Behaviour: Implemented by all agents, this behaviour allows enabling or disabling plugins at runtime. It supports dynamic reconfiguration of agent logic and enhances adaptability without requiring redeployment.
• HB Receiver Behaviour: This behaviour is used in Cluster and Continuum Agents. It receives heartbeat signals sent by lower-layer agents (e.g., Nodes), updates their status, and maintains a local registry of active agents.
• Check Inactive Agents Behaviour: This behaviour complements the heartbeat mechanism. It is used in Cluster and Continuum Agents to scan the list of subscribed agents and identify those that have stopped sending heartbeats, indicating failure or disconnection.
• Manage Subscription Behaviour: Implemented by Cluster and Continuum Agents, this behaviour accepts and registers agents from a lower layer. It enables agents to expand their scope of management as new agents come online and request to be part of the system.
• API Ping Behaviour: Exclusive to the Continuum Agent, this behaviour allows external components such as the command-line interface to verify whether the agent is alive by sending ping messages through the North Bound API.
• Check App Deployment Behaviour: This behaviour is also unique to the Continuum Agent. It verifies that the components of an application have been properly deployed in the framework. It ensures application consistency across the infrastructure.
• Check ML Deployment Behaviour: Like the previous behaviour but focused on machine learning applications. It verifies that ML services are correctly deployed and ready for operation. This behaviour also exists only in the Continuum Agent.
• App Process Behaviour: Implemented in the Continuum Agent, this behaviour analyzes the application description and determines how and where to deploy its components. It interprets application specifications and translates them into deployment strategies.
• ML Process Behaviour: This behaviour, also integrated into the Continuum Agent, is responsible for managing the full lifecycle of machine learning endpoint deployments. It handles the deployment of new ML models or services, monitors the status of deployed models in real-time, supports redeployment in case of model updates or infrastructure changes, and manages the deletion of endpoints when they are no longer needed. This ensures a consistent and automated approach to maintaining ML services across the continuum infrastructure.

Each of these behaviours is designed to work in harmony within its respective agent, ensuring that the system remains modular, scalable, and responsive to dynamic environments. As we continue to develop our framework, we can further refine each behaviour to meet the specific requirements of our agents and enhance the overall efficiency of the multi-agent system.

Messages🔗

SPADE agents communicate by exchanging discrete messages rather than direct method calls, embodying the “computing as interaction” paradigm of multi-agent systems. As previously mentioned, each agent is identified by a unique ID (JID) ( username@domain) and connects to an XMPP server using this ID and a password. SPADE relies on the XMPP (Extensible Messaging and Presence Protocol) as the backbone for all inter-agent communication. This means that every message an agent sends is transmitted as an XMPP message stanza through the server to the target agent. By using XMPP’s standard messaging infrastructure, SPADE ensures that agents can reliably send and receive messages in real time, even across different hosts or network environments. In essence, the XMPP server mediates the exchange, routing each message to the intended recipient agent (identified by its JID) whether the agents reside on the same machine or are distributed over the Internet. This decoupled, server-mediated communication model provides a robust and standardized way for agents to interact, leveraging XMPP’s features for authentication, presence, and security (e.g. encryption) built into the protocol. For this XMPP server, the open-source ejabberd service was selected due to its superior scalability, reliability, performance, security, ease of integration with SPADE, and strong community support. The configuration of the service is made on the config file providing a domain and each agent can register into it by using a jabber id and a password. Once the agent is registered it is ready to start exchanging messages with other registered agents.

Message Dispatching and Templates🔗

Within each SPADE agent, an internal message dispatcher handles incoming and outgoing messages. This dispatcher functions like a mail sorter: when a message arrives for the agent, the dispatcher automatically places it into the proper “mailbox” for handling, and when the agent sends a message, the dispatcher injects it into the XMPP communication stream. The key to this routing is the use of message templates. Each behaviour (task) running within an agent can be associated with a message template that defines the criteria for messages it is interested in. A template can specify fields such as the sender’s JID, the message’s content or subject, thread/conversation ID, or metadata like performative and ontology. When an agent receives a message, the dispatcher compares the message against the templates of all active behaviours and delivers the message to the behaviour whose template it matches. In this way, templates act as filters to ensure each behaviour only processes relevant messages. For example, a template might match messages with a particular sender and a specific performative type, so that only messages from that sender with that communicative intent will trigger the associated behaviour. Messages that meet the template conditions are queued in the target behaviour’s mailbox, where the behaviour can retrieve them asynchronously. This template-based filtering and routing mechanism allows multiple behaviours to run concurrently in an agent without interfering with each other, as each behaviour will only pick up the messages meant for it. It provides a structured approach to message handling, simplifying the development of complex interactions (such as protocol exchanges) by separating them into different behaviour handlers listening for different message patterns.

FIPA Standards for Structured Communication🔗

SPADE’s messaging model also draws from established standards to ensure that communications are well-structured and interoperable. In particular, SPADE supports message formats inspired by the FIPA (Foundation for Intelligent Physical Agents) Agent Communication Language standards. FIPA defines a set of message fields and interaction protocols intended to promote clear semantics and compatibility among agents. In SPADE, each message’s metadata can include standard FIPA-ACL fields like the performative (which describes the intent of the message, such as “inform” or “request”), the ontology (which defines the domain of discourse or vocabulary of the message content), and the language (the format of the message content). By allowing these fields in the message structure, SPADE ensures that every message carries not just raw data but also contextual information about how to interpret that data. Adhering to FIPA communication standards means that SPADE agents follow a common protocol syntax and semantics, which in principle makes it easier for them to interact with agents from other FIPA-compliant platforms. In other words, the use of well-defined performatives and message fields imposes a consistent structure on messages, reducing ambiguity and enhancing interoperability. This standards-based approach to message handling helps achieve a level of consistency in agent communication, so that the intent and context of messages are understood in a uniform way across different agents and systems. Ultimately, SPADE’s alignment with FIPA standards reinforces structured agent interactions and lays the groundwork for integration with the broader multi-agent ecosystem where such standards are followed.

Interactions – Coordination🔗

Agents rely on behavioural logic and message exchanges to interact and coordinate tasks across the layers of the continuum. Below is an example illustrating how subscription and heartbeat mechanisms are implemented using agent behaviours to facilitate this interaction.

Subscription and Heartbeat Messages🔗

Subscription and heartbeat messages are essential processes used to register available nodes within the continuum and to maintain up-to-date information about the status of nodes and agents across the entire system.

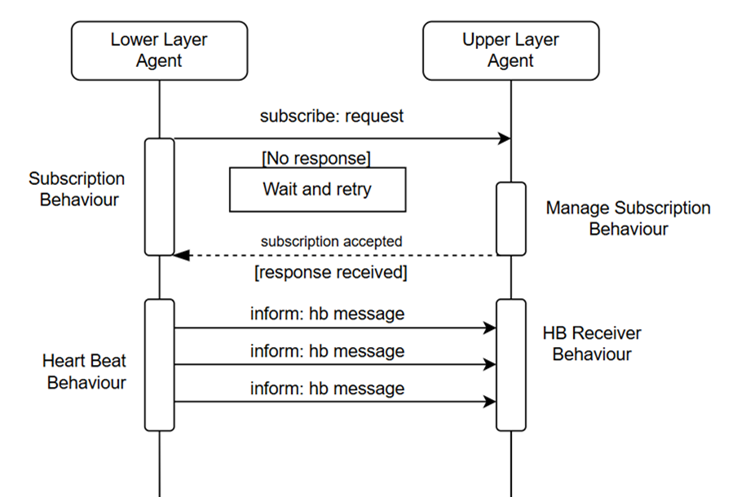

In the subscription process, a lower-layer agent sends a subscription request using the subscribe performative to an upper-layer agent. Since the behaviour is cyclic, the lower-layer agent continues to send subscription requests until it receives a subscription accepted message from the upper-layer agent. Once the acknowledgment is received, the agent stops the cyclic subscription behaviour and initiates the periodic heartbeat behaviour.

During the heartbeat phase, the lower-layer agent periodically sends heartbeat (HB) messages using the inform performative. The upper-layer agent, which runs a heartbeat receiver behaviour, constantly listens for these messages and updates its records based on the latest HB information.

As shown in Figure above, the interaction between agents through message exchanges and behaviour logic enables the coordinated execution of various tasks across the continuum. In this example, the focus is on the subscription and heartbeat process. These coordinated mechanisms allow agents to collaborate and support broader functionalities within the framework,
